Capacity：1-10t/h
Feed size：2-8mm sawdust
Outsize：6mm, 8mm, 10mm, 12mm pellets
Application：All kinds of hard and soft wood, sawdust, wood shavings, bark, waste materials from lumber mills,rice husk, peanut shells,corn stover, etc.

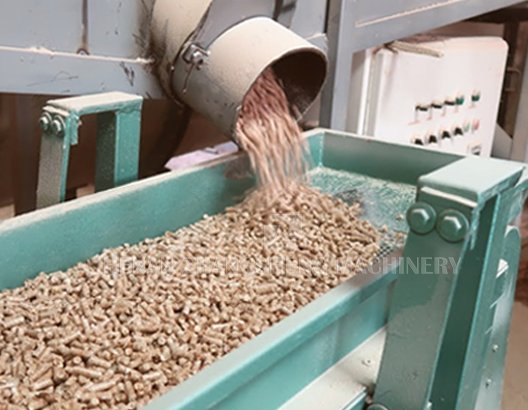

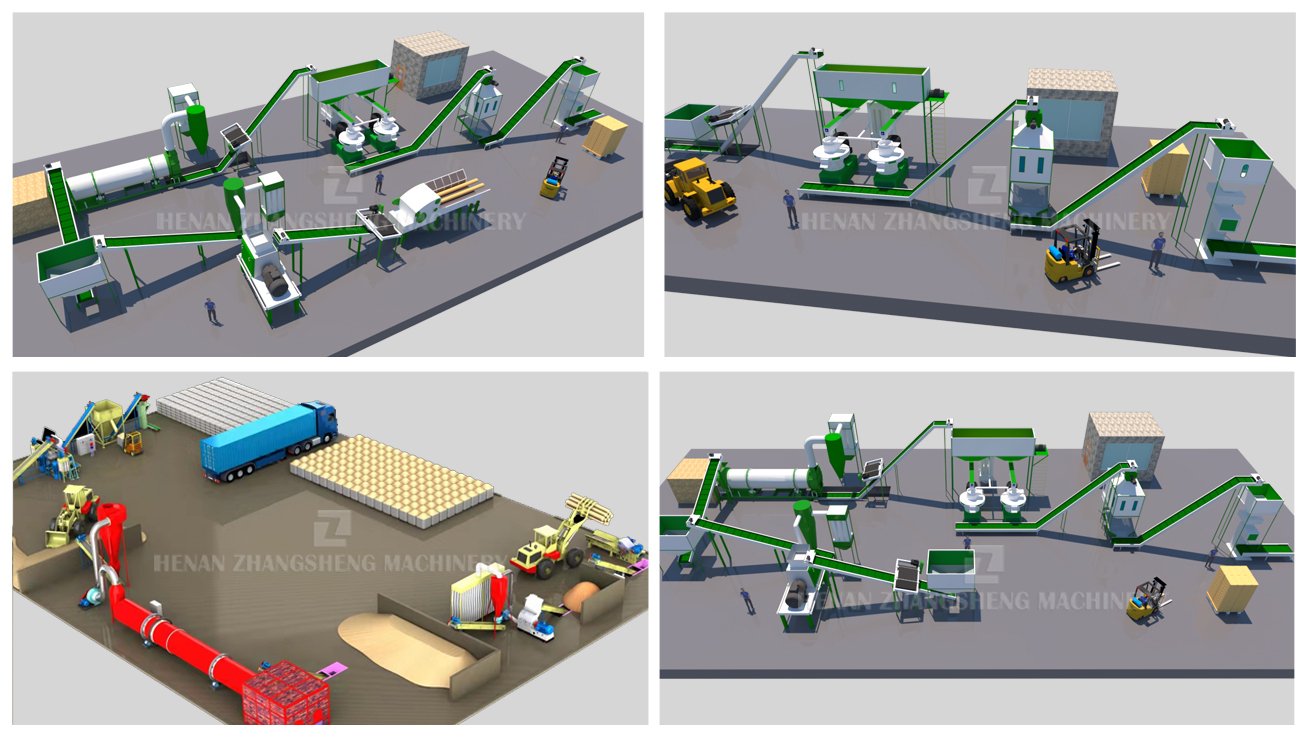

ZhangSheng wood pellet production line integrates all processes from raw materials to pellets, including crushing, drying, pellet making, cooling and packing, with an output of 1 to 10 tons per hour.
The cleanliness of our pellet production line can reach 98%, effectively ensure the cleanliness of the workshop environment.
We have rich experience and can provide tailor-made solutions according to customers' requirements.
| Model | 450A | 450B | 560A | 560B | 560C | 700 | 850 |
| Main Motor power(kw) | 55 | 75 | 90 | 110 | 132 | 160 | 220 |
| Capacity(t/h) | 0.6-0.8 | 0.8-1 | 1-1.3 | 1.5 | 2-2.5 | 2.5-3 | 3-4 |
| Pellets size(mm) | 6-12mm | ||||||
| Material Pulling Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
| Fan powerr(kw) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Conveyor power(kw) | 2.2 | 2.2 | 3 | 3 | 3 | 3 | 3 |

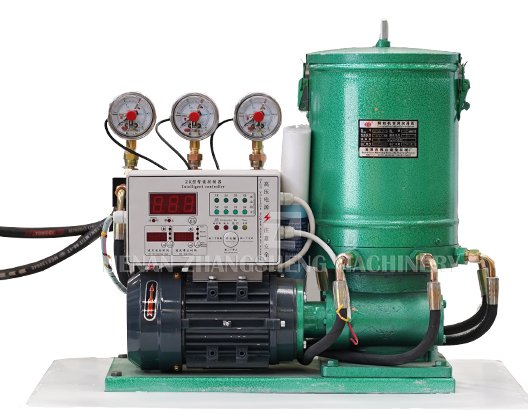

| Automatic oiling(kw) | 0.37+0.55 | ||||||
| Weight（t） | 3t | 3t | 4.5t | 5t | 5.5t | 8t | 13t |
As an original factory with 20 years' experience, we have rich experience and can provide tailor-made solutions according to customers' requirements.

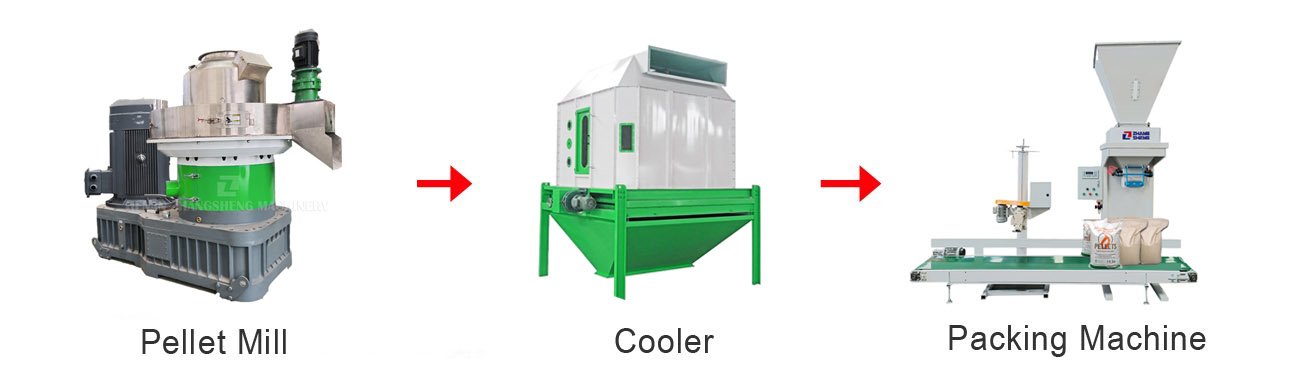

If your raw material is wood sawdust, the pellets making, cooling and packing process is in need.

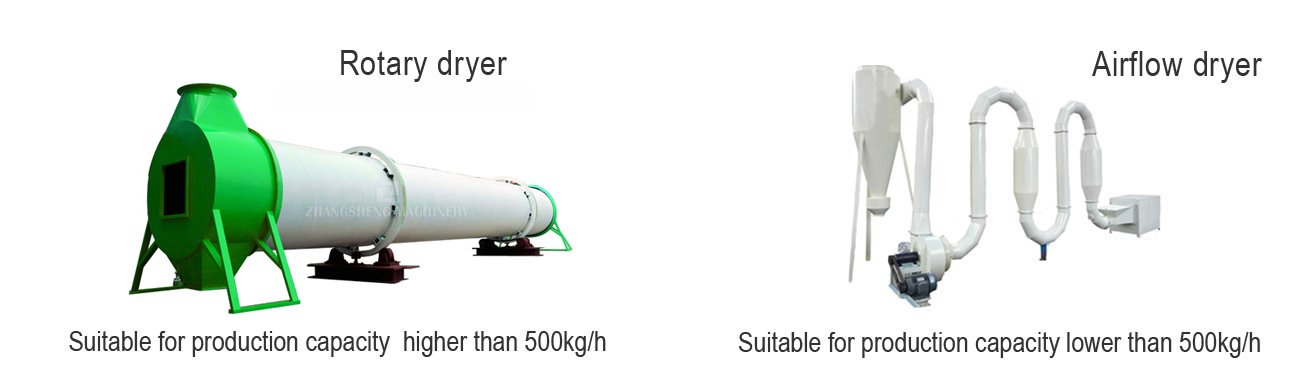

If the moisture content of sawdust exceeds 18%, additional drying equipment is required before pelletizing.

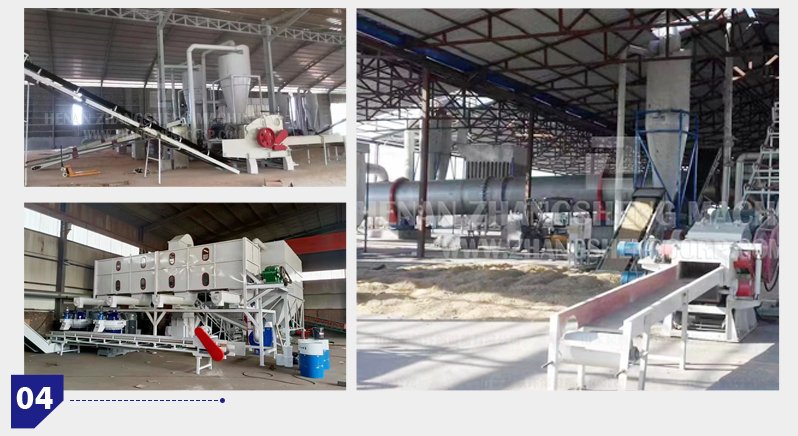

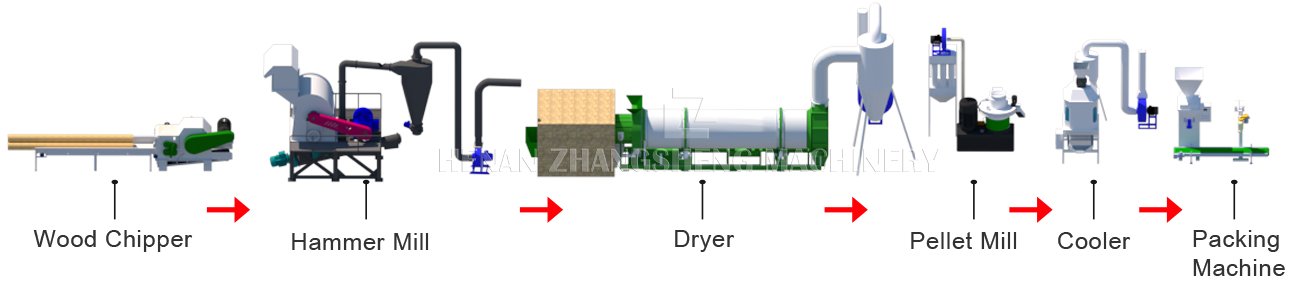

If your raw material is logs/twigs, a complete production line including slicing, crushing, drying, pelletizing, cooling and packaging is in need.
 |  |
 |  |

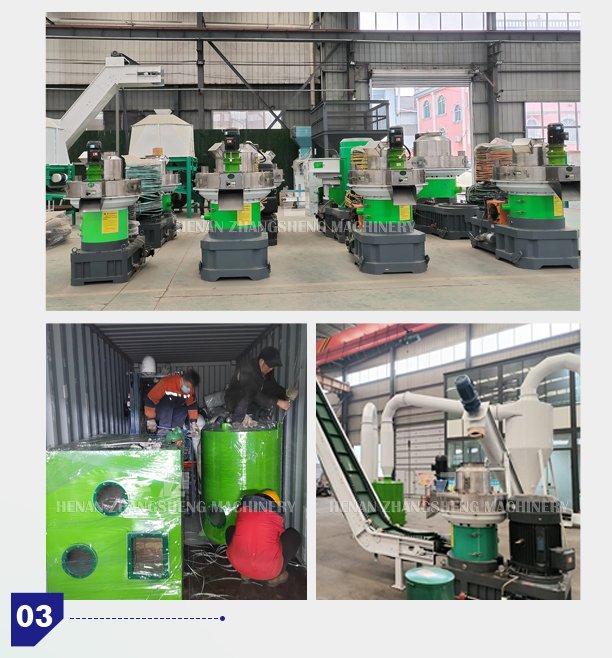

Provide spot delivery, fast shipping. We offer free guide technical and installation for customers. After-sales are available to service machinery overseas.
Long development history, specialized in research and development
We adopt proper packaging to ensure product safety and save freight
Experience of manufacturing and installing project globally, which help them get huge economic benefits.
Where is your workshop?

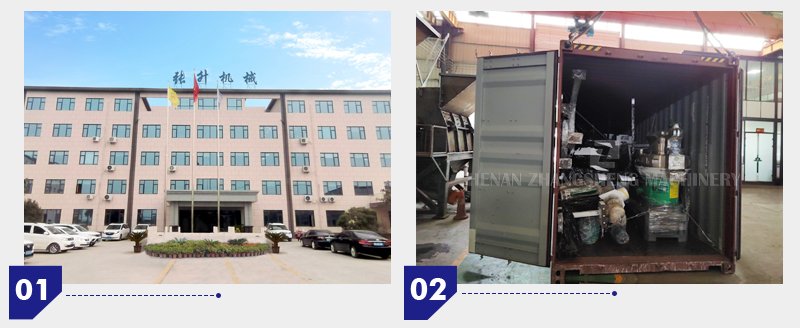

Our headquarter is located in Zhengzhou, Henan, and our factory is located in Gongyi City, which is famous for its machinery.
How is the quality of your products?
We have been approved of ISO,CE ,BV and always produce our products strictly according to national and intertnational standards.We do strict inspection in every production stage, all the machines we sell are under warranty.
How much is the whole set?
The price of the machine is different according to the capacity, material and configuration.
